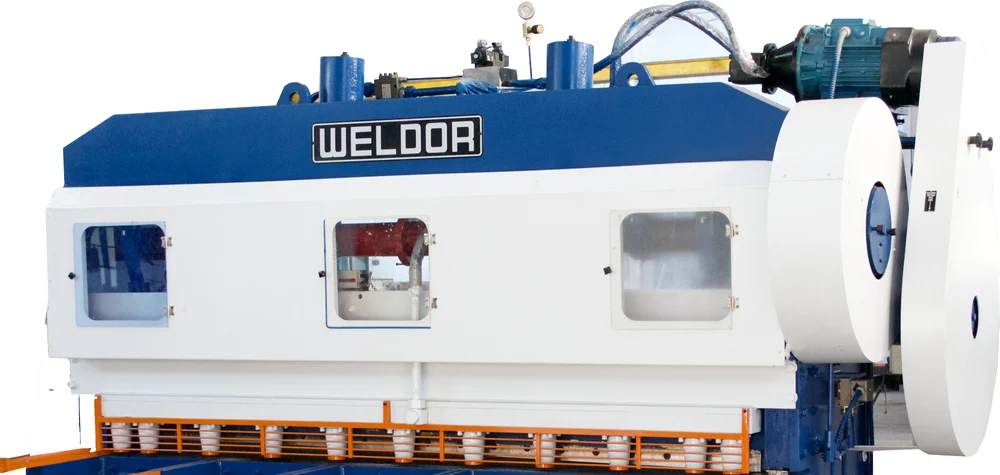

Over Crank Shearing Machine (Mechanical / Pneumatic Clutch)

FRAME

Rigid steel frame of Weldor Shears are optimally designed to avoid weak sections and is of interlocked design. The ram is guided throughout its length by accurate machined guideways ensuring proper clearance and clean cut.

CLUTCH, BRAKE & DRIVE

Revolving type Clutch & Brake with the Main Gear engages every time when foot pedal is pressed. Drive provided through V-Belt & all journals are fitted in Gun-Metal Bearings. Brake is adjustable and incorporated on end of Crank Shaft.

HOLD-DOWN SYSTEM

Hydraulic Hold down pads are actuated by Hydraulic power pack / cam operated hold down pads hold the sheet securely to avoid slipping and bowing resulting in clean square cut. Hold down units are provided with oversize pads to avoid impressions on sheet metal on request.

BLADES

Weldor Shears are provided with high quality single segment (HcHcr) Blades for longer tool life. Ease in assembling of knife reduces down-time. The shear blades are four edged.

LUBRICATION

All bearing parts and guide surfaces are lubricated through hand-operated lubrication system.

MECHANICAL BACKGAUGE

This is a standard equipment provided on all Weldor shears. Scale on the backgauge gives instantaneous reading of distance between shear and back gauge. Thus avoiding errors and maintenance encountered in electronic equipment.

FINGER GUARD

Fitted in front of hold-down for operator protection without obstructing viewing.

STANDARD ACCESSORIES

• Gear & wheel guard
• Hand operated back gauge
• Manual lubrication system
• T-slot front supporters
• Front Scale Gauge
• Hydraulic Hold down & Instruction Manual

OPTIONAL ACCESSORIES

• Automatic Lubrication system
• Electricals consist of Electric Motor, Control panel, V-belts
• Ball roller or ball transfer
• N.C. Backgauge, Extension squaring arm
• Foundation bolts
• Motorised Back gauge with DRO

POWER SUPPLY

400/440 Volts, 3 Phase, 50 Cycles. All dimensions are in mm.

PNEUMATIC CLUTCH & BRAKE

Electrically controlled & Air operated Clutch & brake combine unit permits high frequency of operation and more flywheel energy for work. Pneumatic Clutch & Brake is automatically compensated for wear. Oil adjustment is necessary. Surge Tank, Filter, Regulator, Air Lubrication Unit, Pressure Switch are incorporated. Pneumatic Counter Balancer are provided to Counter the Weight of Slide & Tooling which helps in taking up the Bearing clearances and ease Slide adjustment.
