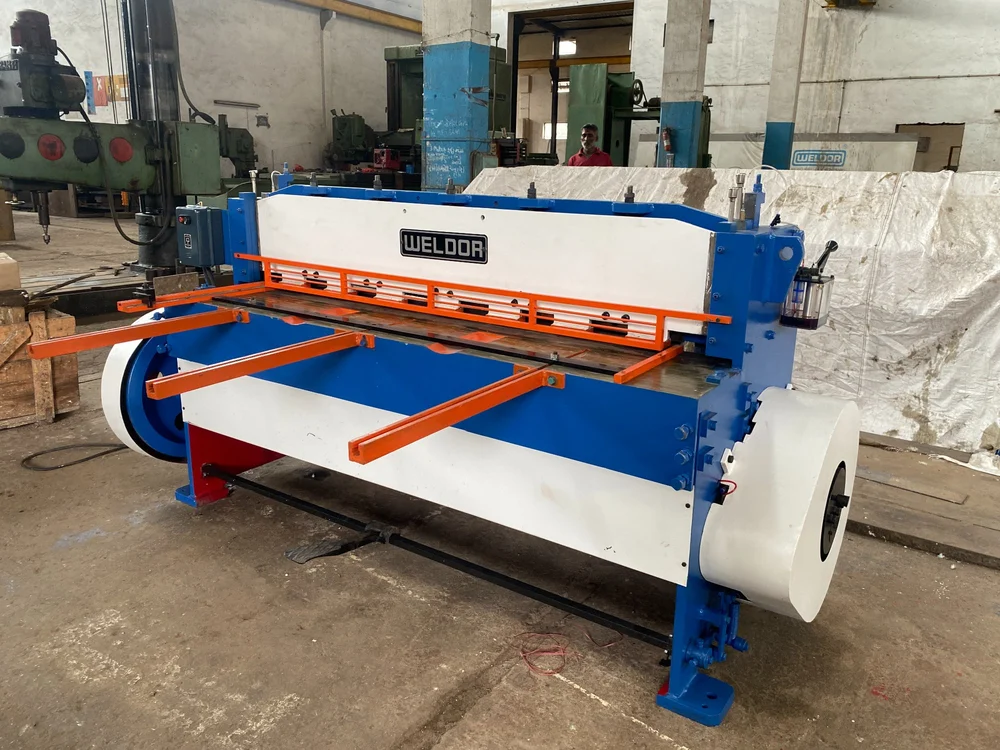

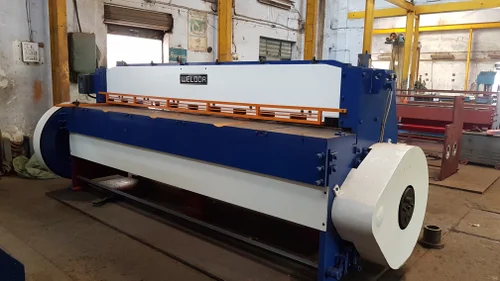

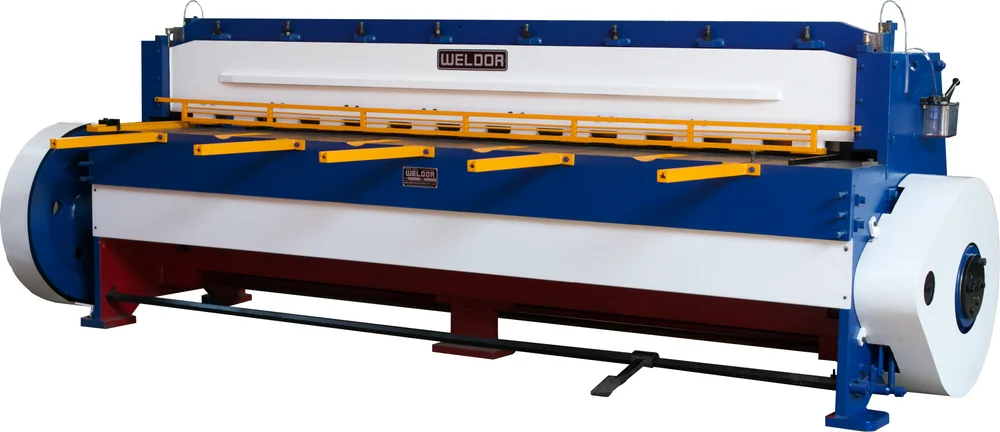

Under Crank Shearing Machine (Guillotine Shearing)

FRAME

Rigid steel frame of Weldor Shears are optimally designed to avoid weak sections at load supports and is of interlocked design. The ram is guided throughout its length by accurate machined guideways ensuring proper clearance and clean cut.

HOLD-DOWN SYSTEM

Spring loaded mechanical Hold down pads hold the sheet securely, to avoid slipping and bowing resulting in clean square cuts. Holddown units are provided with oversize pads to avoid impressions on sheet metal on request.

BLADES

Weldor Shears are provided with high quality single segment (HcHcr) Blades for longer tool life. Ease in assembling of knife reduces down-time. The shear blades are four edged.

LUBRICATION

All bearing parts and guide surfaces are lubricated through hand-operated lubrication system.

MECHANICAL BACKGAUGE

This is a standard equipment provided on all Weldor shears. Scale on the backgauge gives instantaneous reading of distance between shear and back gauge. Thus avoiding errors and maintenance encountered in electronic equipment.

FINGER GUARD

Fitted in front of hold-down for operator protection without obstructing viewing.

STANDARD ACCESSORIES

• Gear & wheel guard
• Hand operated back gauge
• Manual lubrication system
• T-slot front supporters
• Front Scale Gauge
• Mechanical Hold down
• Instruction Manual

OPTIONAL ACCESSORIES

• Automatic Lubrication system
• Electricals consist of Electric Motor, Starter, V-belts
• Ball roller or ball transfer
• N.C. Backgauge, Extension Squaring arm
• Foundation bolts
• Motorised Back gauge with DRO

POWER SUPPLY

400/440 Volts, 3 Phase, 50 Cycles. All dimensions are in mm. As day to day improvements are contemplated we reserve the right to change specification/design without prior notice.
